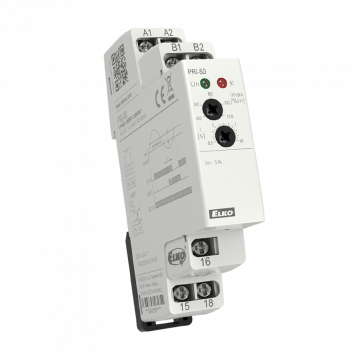

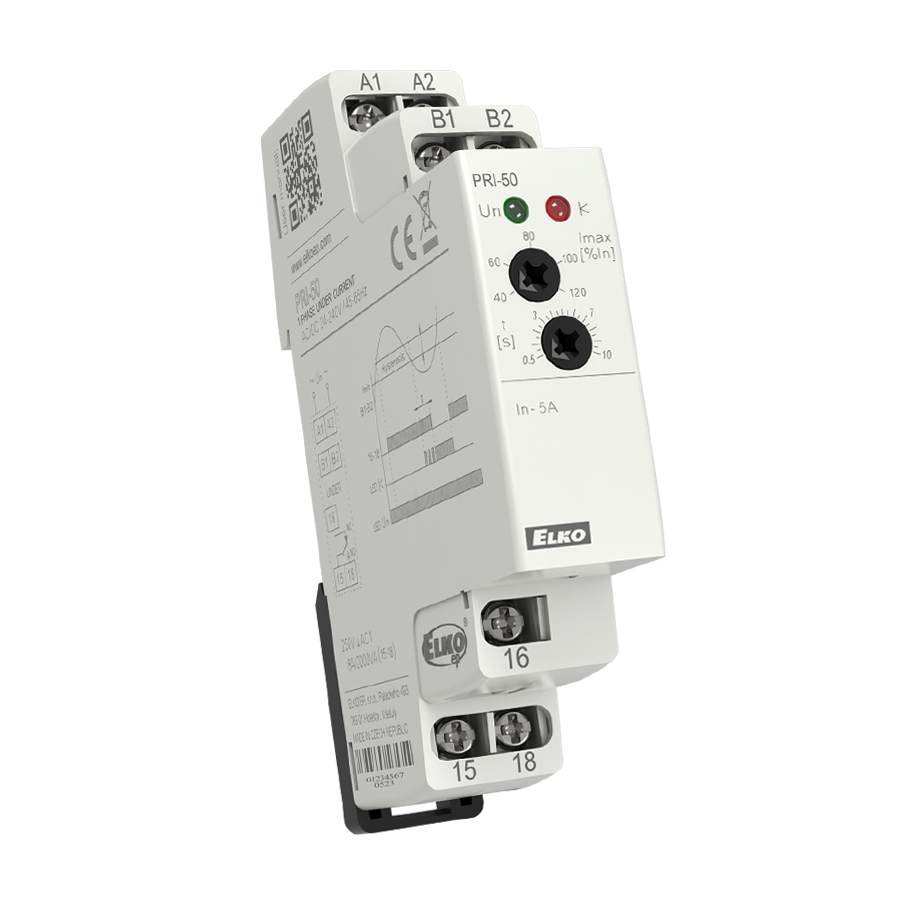

Current monitoring relay of Imin level in 1P - AC PRI-50
Auslaufmodell – Verkauf wurde eingestellt
EAN:
8595188142083
|
Code:
4208 standard
Description
- It is used, for example, to monitor the operation of pumps, interruptions of radiators or lighting.
- Continuous setting of tripping current by potentiometer from 2 to 6 A AC.
- Monitors the decrease in current magnitude below the level of Imin.
- Adjustable delay 0.5 - 10 s (eliminate short current peaks, on of short...).
- Possible to use for scanning of current from current transformer.
- Power supply galvanically separated from the monitored current circuit.
Technical parameters
- Voltage type: AC
- Monitored levels: undercurrent
- Monitored range: 2 - 6 A (50/60 Hz)
- Output type: 1x CO, 8 A
- Housing: 1-MODULE
- Supply voltage (frequency): AC/DC 24-240 V (AC 50/60 Hz)
